SEYMOUR DUNCAN SSL-5 RWRP

Price
$89
Only 1 left in stock!
Pickup available at 359 Merchant Street

Usually ready in 24 hours

View store information

Greetings from the Tweed Hut Music Store, Vacaville, CA. USA! Established 2002, We do a great job and will not let you down!

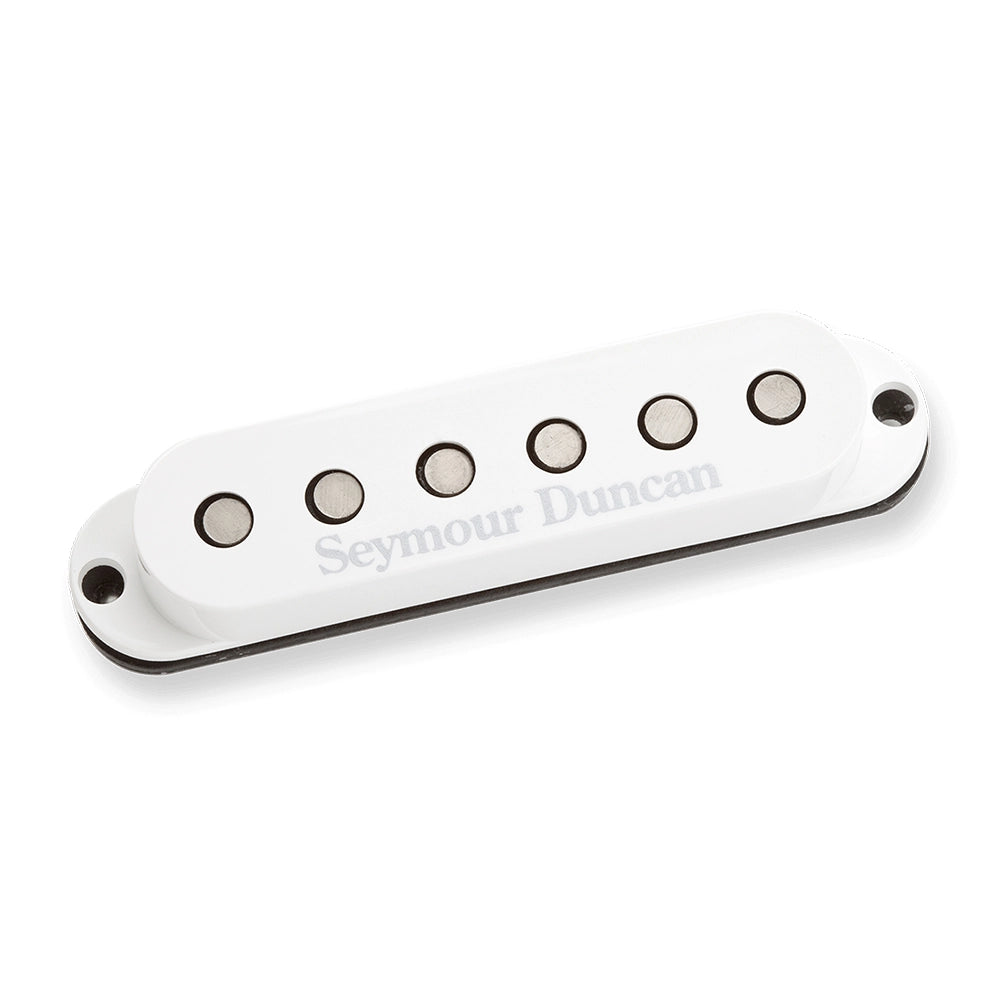

The Custom Staggered is a special overwound single-coil that strikes a great balance between increased output and classic Stratocaster tonal character. It will deliver bigger, fatter chords, and will cut through the mix more clearly than a traditional Strat pickup, all the while maintaining the magic and mojo that make a Strat sound like a Strat. Single notes are bold and loud, and solos truly sing. Use in the bridge position with a pair of Vintage Staggered Strat pickups in the neck and middle for the Gilmour-approved setup. Use a Custom Staggered RWRP in the middle for noiseless setup in positions 2 and 4.

The Custom Staggered Strat pickup is also available in a 7-string version. The bobbins are built with hand-ground Alnico 5 rod magnets, lacquered and wound, and are wax potted for squeal-free performance. We use modern oval Forbon flatwork (non-triangular) which enables this pickup to fit into any guitar that is routed for single coils.

  • Neck/Middle/Bridge position models will have the same output, wind direction and magnetic polarity.
  • Middle RwRP position (reverse wind/reverse polarity) – choose this to have a pickup that will be hum-cancelling with one of our neck or bridge models.
  • All sets, except the Jimi Hendrix signature model, come with a Middle RWRP as the Middle Pickup.
  • Tapped- High output models may have a “tap” option available. An additional lead wire is placed midway through the coil wind, allowing wiring to a push-pull pot or mini-toggle switch to give an additional vintage output level option.
SPECIFICATIONS
Type: Single-coil
Active/Passive: Passive
Magnet Material: Alnico V
Position: Middle (RWRP)
Number of Conductors: 2 wire
DC Resistance: 13.3K
Number of Strings: 6
Covering: Covered
Color: White
Manufacturer Part Number: 11202-05-RwRp
