EVH 5150® ICONIC® SERIES 40W 1X12 COMBO

Price
$674.99
Only 1 left in stock!
Pickup available at Tweed Hut Music Store

Usually ready in 24 hours

View store information
Greetings from the Tweed Hut Music Store, Vacaville Ca. USA! Established 2002, We do a great job and will not let you down!

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that pure and powerful EVH tube tone, but at a more affordable price. Evolving from the revered EVH 5150III® amplifiers, the Iconic Series delivers the searing sound and growling gain that Eddie Van Halen made famous throughout his groundbreaking career.

Designed by renowned amp engineer, James Brown, the 5150® Iconic® Series 40-watt 1x12 combo, is powered by two JJ 6L6 power tubes and voiced with two JJ ECC83S preamp tubes, providing all the firepower the modern guitarist needs. Armed with a custom designed EVH 12” Celestion® speaker voiced specifically for this preamp circuit, the pristine cleans and searing high gain tones are tight, clear and articulate. The cabinet is constructed out of MDF with special internal plywood baffling for tight and increased bass response, and houses a custom designed EVH 12” Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.

Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel’s burn button adds fiery crunch that’s ideal for blistering leads.

Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The channel two noise gate’s quick attack suppresses any hiss while ensuring all staccato riffing is articulate and crisp, not choked and choppy. The Boost control allows you to add another 10Db of foot-switchable volume to your tone — perfect for ensuring your solos cut through the mix. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.

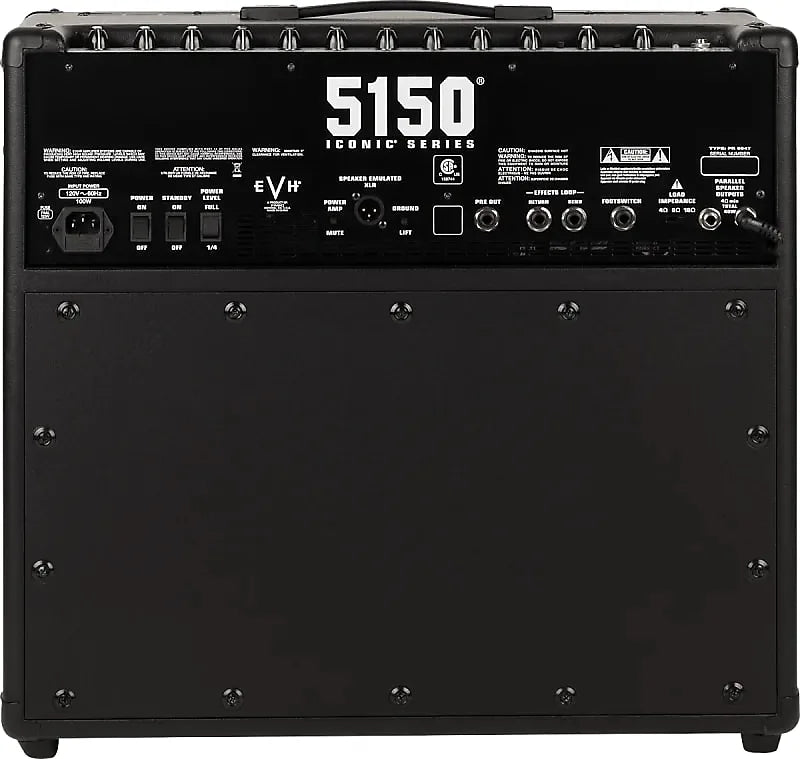

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage—allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system.

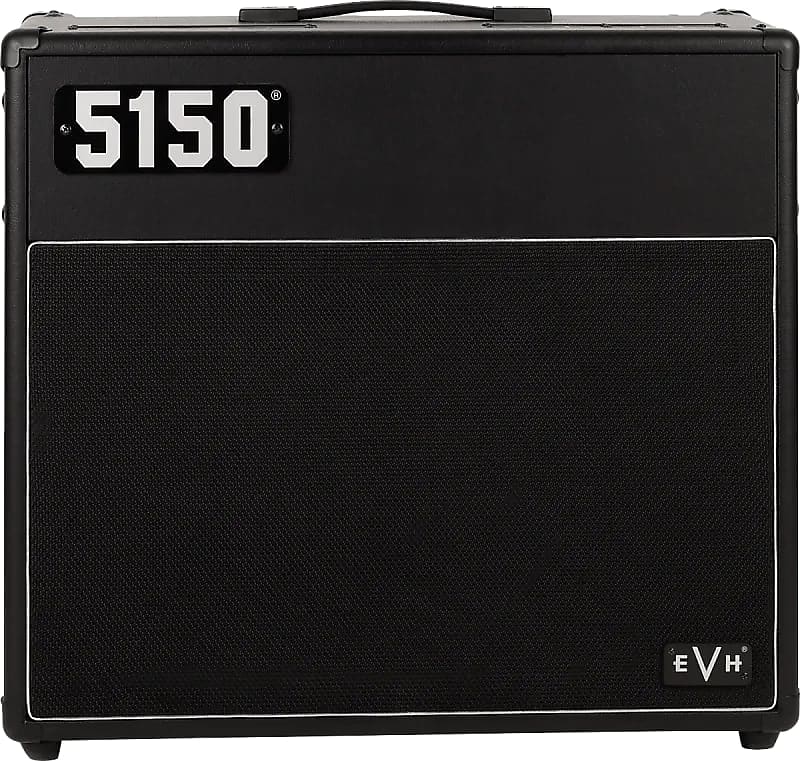

Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 40-watt 1x12 combo is wrapped in either Black or Ivory textured vinyl with a black cloth front grille and features silver and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle. A high-quality fitted cover is available as an EVH Accessory.

  • Product Specs
  • General
  • Amplifier Type
  • Tube
  • Color
  • Black
  • Country Of Origin
  • CN
  • Series
  • EVH® 5150® Iconic®


  • Electronics
  • Channels
  • Two - Clean/Overdrive and Lead/Burn
  • Connection Type
  • 1/4"
  • Control Panel
  • Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Noise Gate (Channel 2); Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Master Boost; Global Reverb, Resonance and Presence
  • Controls
  • Channel 1: Gain w/ Overdrive Switch; Channel 2 Gain w/ Burn Switch; Noise Gate Channel 2: Low, Mid, High EQ; Channel 1/ Channel 2 Volume, Master Boost, Global Reverb, Resonance, and Presence
  • Effects
  • Reverb
  • Effects Loop
  • 1/4" (Send/Return)
  • Headphone Jack
  • None
  • Inputs
  • One - 1/4"
  • Line Out
  • Two - (One XLR and One 1/4")
  • Voltage
  • 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
  • Wattage
  • 40 Watts


  • Hardware
  • Amplifier Covering
  • Black Textured Vinyl
  • Cabinet Material
  • MDF w/ Plywood Baffle
  • Control Knobs
  • Black Chicken-Head Style Pointer
  • Front Panel
  • Brushed Aluminum
  • Grille Cloth
  • Black
  • Handle
  • Molded Plastic Strap with Black Powder Coated Caps
  • Speaker Jack
  • Two - 1/4" Parallel


  • Speakers
  • Speaker Wattage
  • 40 Watts
  • Speakers
  • One - 12" EVH® Celestion® Custom
  • Total Impedance
  • 4, 8, or 16 ohms


  • Tubes
  • Power Tubes
  • 2 x JJ 6L6
  • Preamp Tubes
  • 2 x JJ ECC83S (12AX7)
  • Rectifier
  • Solid State
