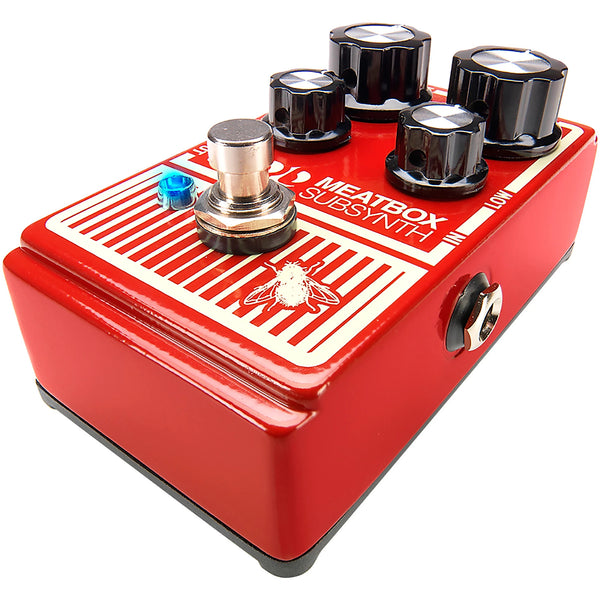

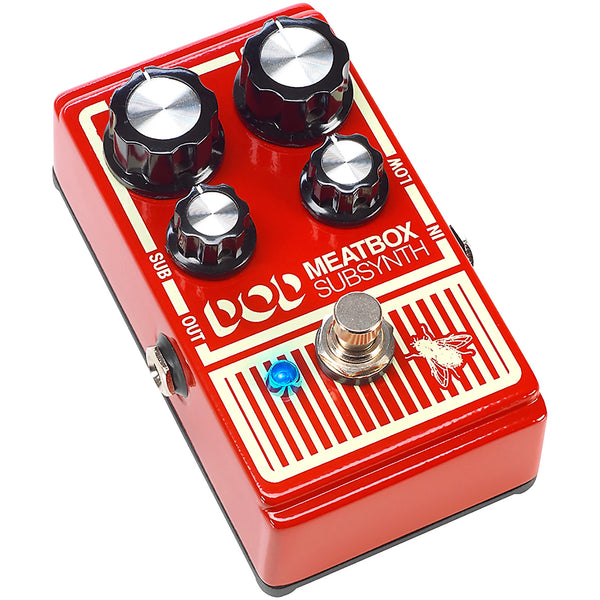

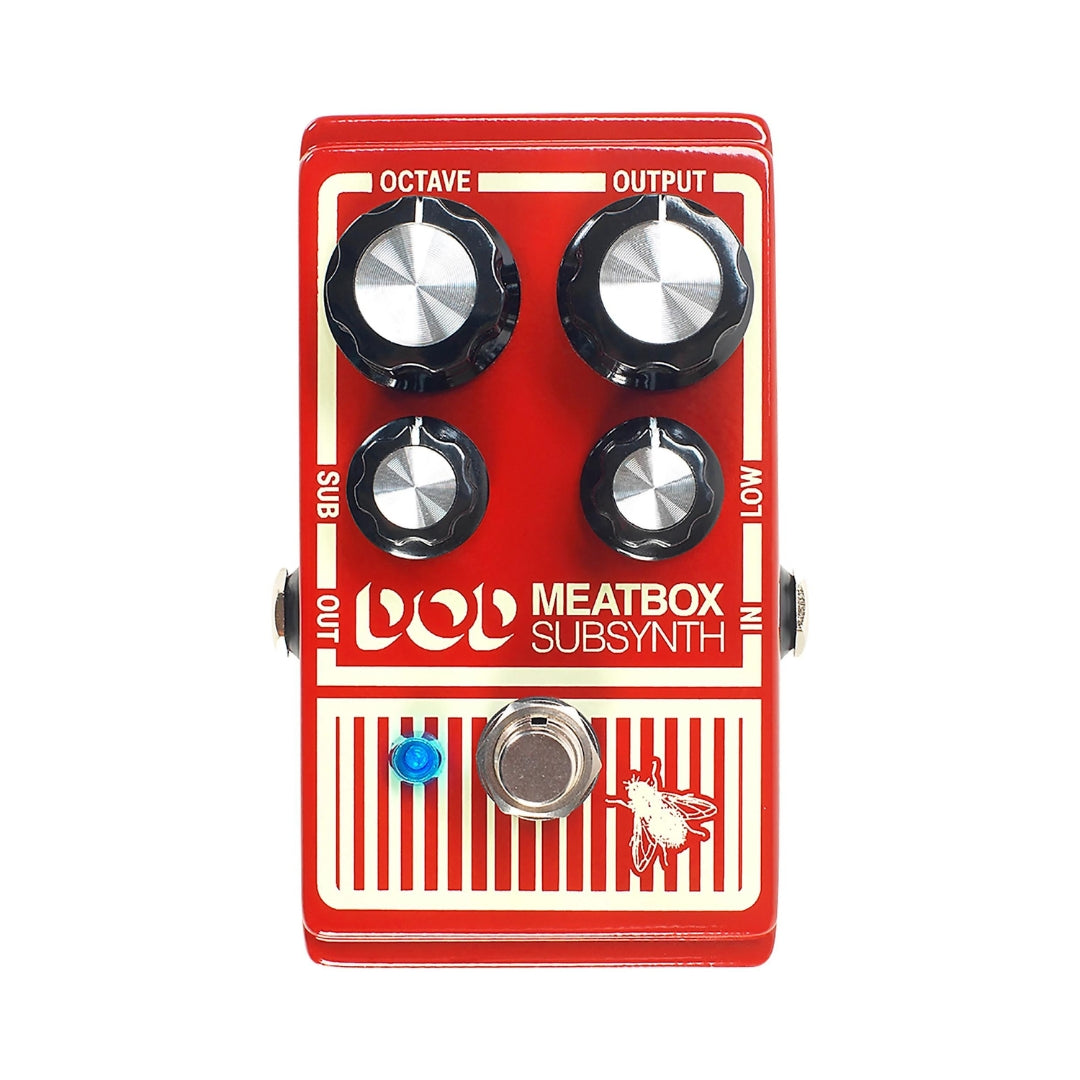

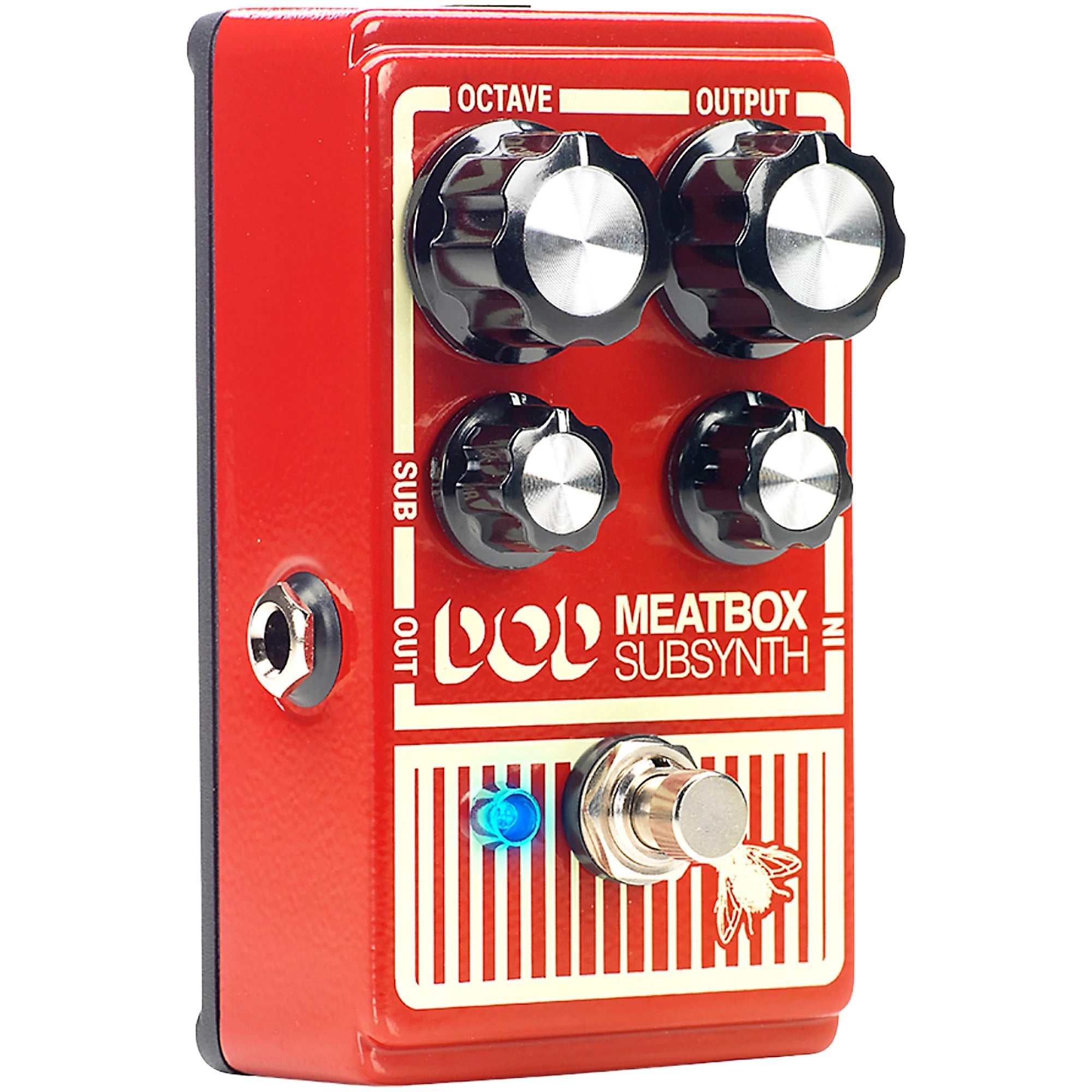

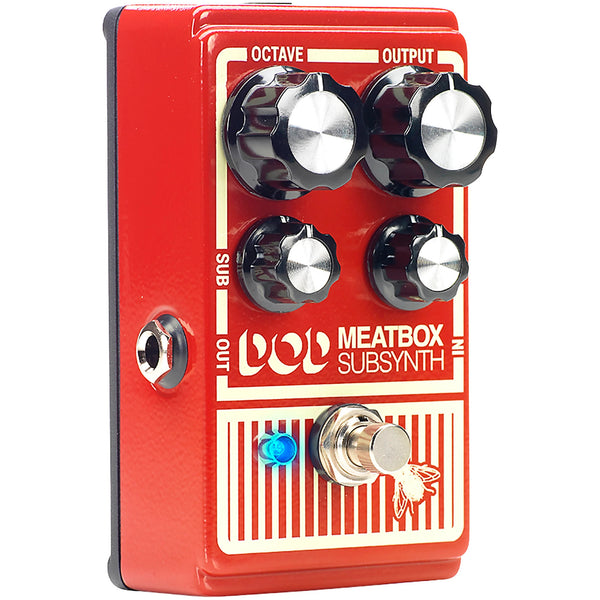

Digitech proudly present the DOD Meatbox (2015).

Answering the call of low frequency freaks everywhere, the DOD Meatbox (2015) is an updated take on the cult favorite Meatbox from the ‘90s. As a bass subharmonic synthesizer and low-end enhancer, the Meatbox can produce a range of sounds from a slight thickening to a full-on, low-end assault! Use the Meatbox on bass guitars, extended-range guitars, synths, even drum machines and push all the air out of any room. If you’re looking for a new way to move your audience, look no further.

More than just a low frequency boost, the DOD Meatbox (2015) can also cut frequencies for tone sculpting as an interactive EQ and even produce distortion depending on where the output level is set.

The DOD Meatbox (2015) offers independent Octave, Output Level, Subharmonic and Low Frequency controls. True bypass allows your tone to remain pristine even when the DOD Meatbox is off. This is a big difference from the original, which would color your bypassed tone. The modern 9V DC power supply input makes the pedal more pedalboard friendly.

WARNING!

The Meatbox is capable of producing a large amount of low frequency signal.  The Meatbox has the potential to damage speakers if not kept to a reasonable level. Start with the Sub and Octave all the way counter-clockwise, and the Level and Low at noon.  As you increase the amount of Sub and/or Octave watch the clipping indicators at all gain-stages on your pre-amps and amplifiers.  If you see or hear clipping at any stage, back off the levels until clipping is eliminated, and do not increase the level any further.

Features:

• Based on the iconic DOD Meatbox circuit design with updated components
• TRS Output
• True bypass
• 9V DC power supply jack
• Crisp blue status LED
• Lighter aluminum chassis

Specifications Dimensions4.68” x 2.63”x 2.25” (L x W x H)Weight~0.62 lbs. / 0.281 kgs.Input(1) ¼” InstrumentInput Impedance1M OhmOutput(1) ¼” TRS (Tip = Octave+Sub, Ring = Dry, Sleeve = Ground)ChassisAll MetalPower Supply9V Alkaline Dry Battery; PS0913DC power supply
