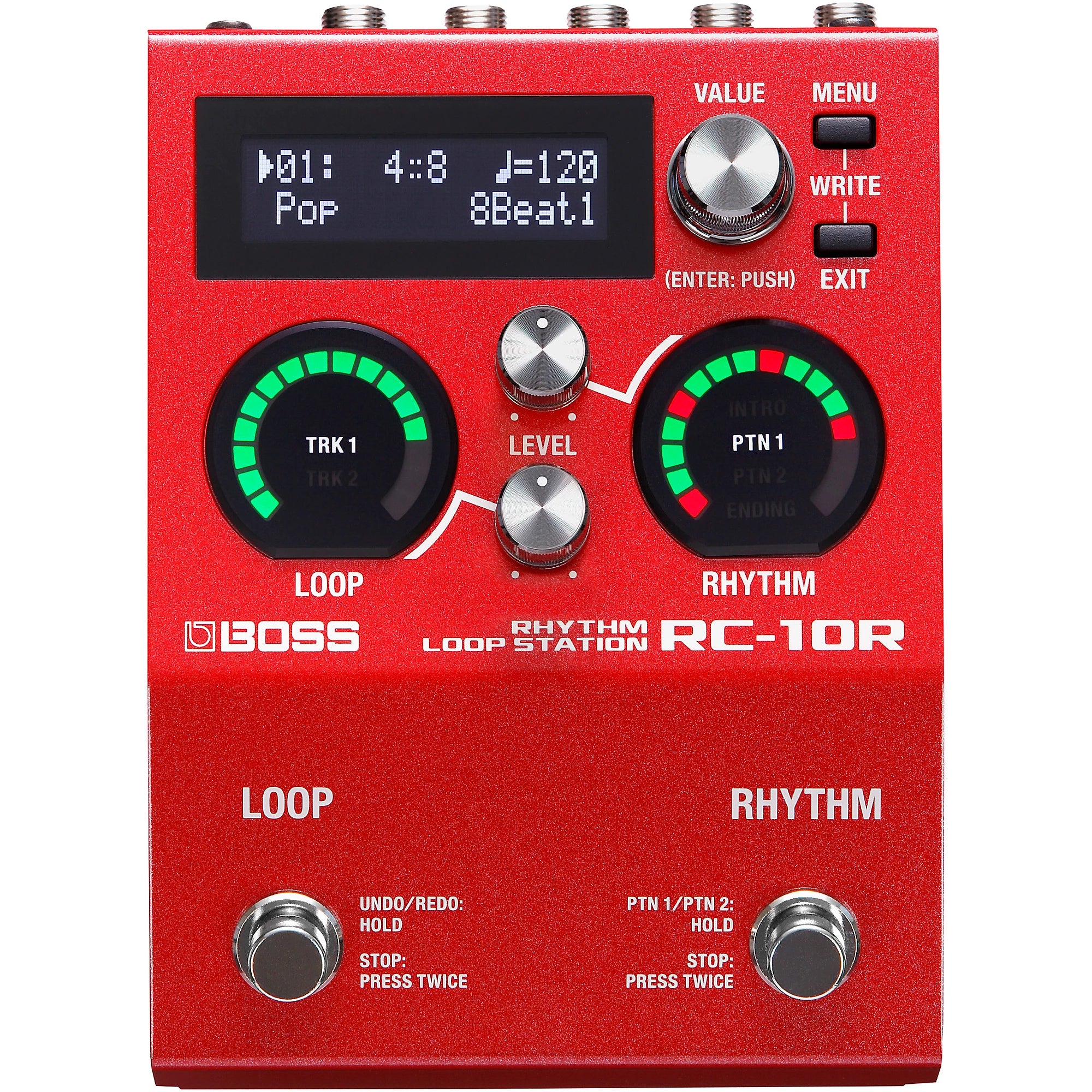

Combining song-based looping and organic rhythms in a compact package, the RC-10R brings fresh inspiration to live performances, songwriting sessions, and daily practice. This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills. Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI. A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.

SPECIFICATIONS (LOOPER)

Sampling Frequency: 44.1 kHzAD/DA

Conversion: 32 bits

Processing: 32-bit floating point

Recording/Playback

Maximum Recording Time: Approx. 6 hours (stereo)
Maximum Phrase Memory: 99
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)

SPECIFICATIONS (RHYTHM)

Rhythm Type: 280 types or greater

Rhythm Control: Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, EndingRhythm Kit16 types

Maximum Polyphony: 24 voices

Effect: Reverb (only for rhythm part)

SPECIFICATIONS (COMMON)

Memory: 99

Nominal Input Level: INPUT A/MONO, B: -10 dBu

Maximum Input Level: INPUT A/MONO, B: +8 dBu

Input Impedance: INPUT A/MONO, B: 1 M ohm

Nominal Output Level: OUTPUT A/MONO, B: -10 dBu

Maximum Output Level: OUTPUT A/MONO, B: +8 dBu

Output Impedance: OUTPUT A/MONO, B: 1 k ohms

Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater

Bypass: Buffered bypass

Controls: RHYTHM switch, LOOP switch
VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob

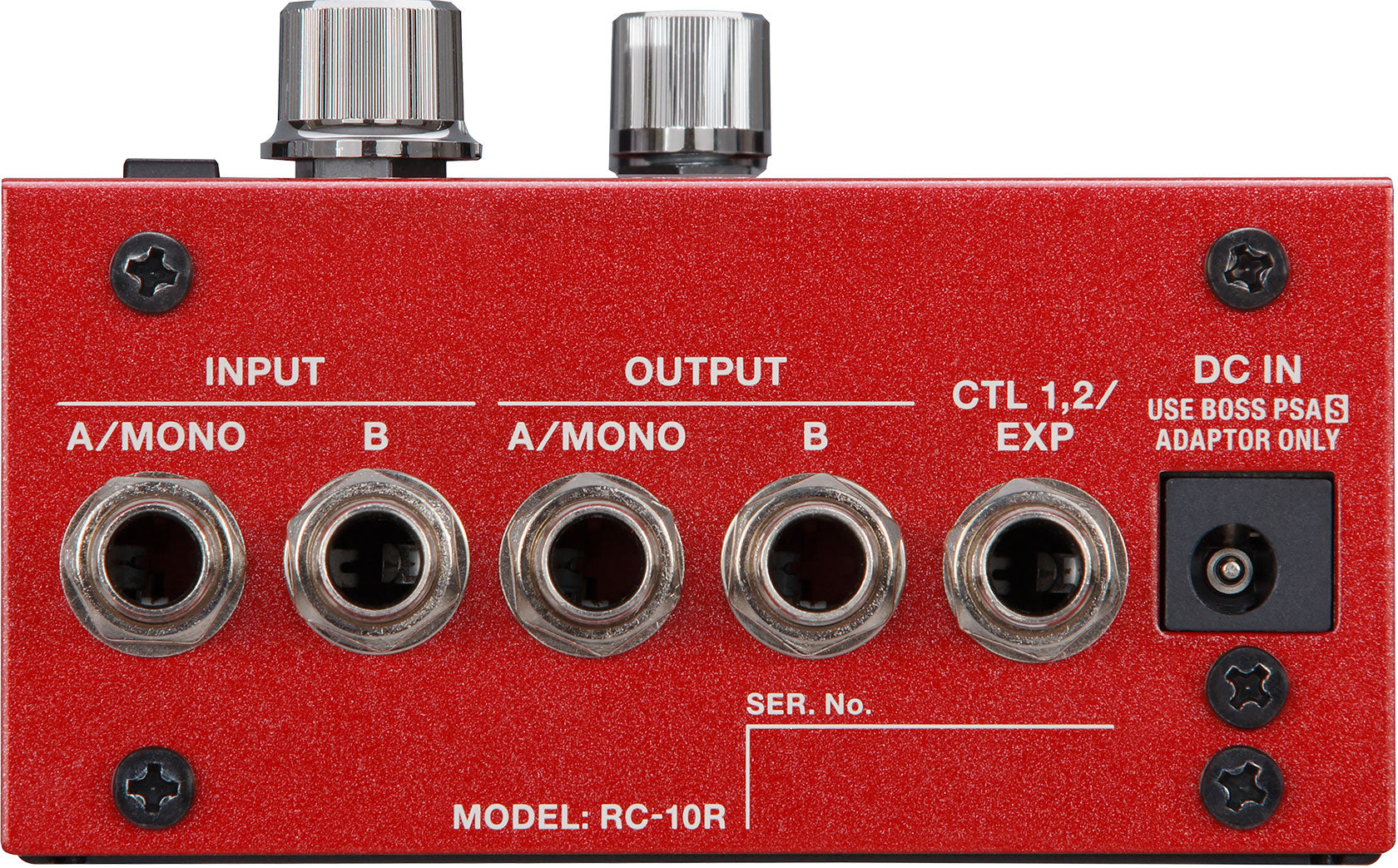

MENU button, EXIT buttonDisplay16 characters x 2 lines LCD (with backlit)IndicatorRHYTHM indicator, LOOP indicatorConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

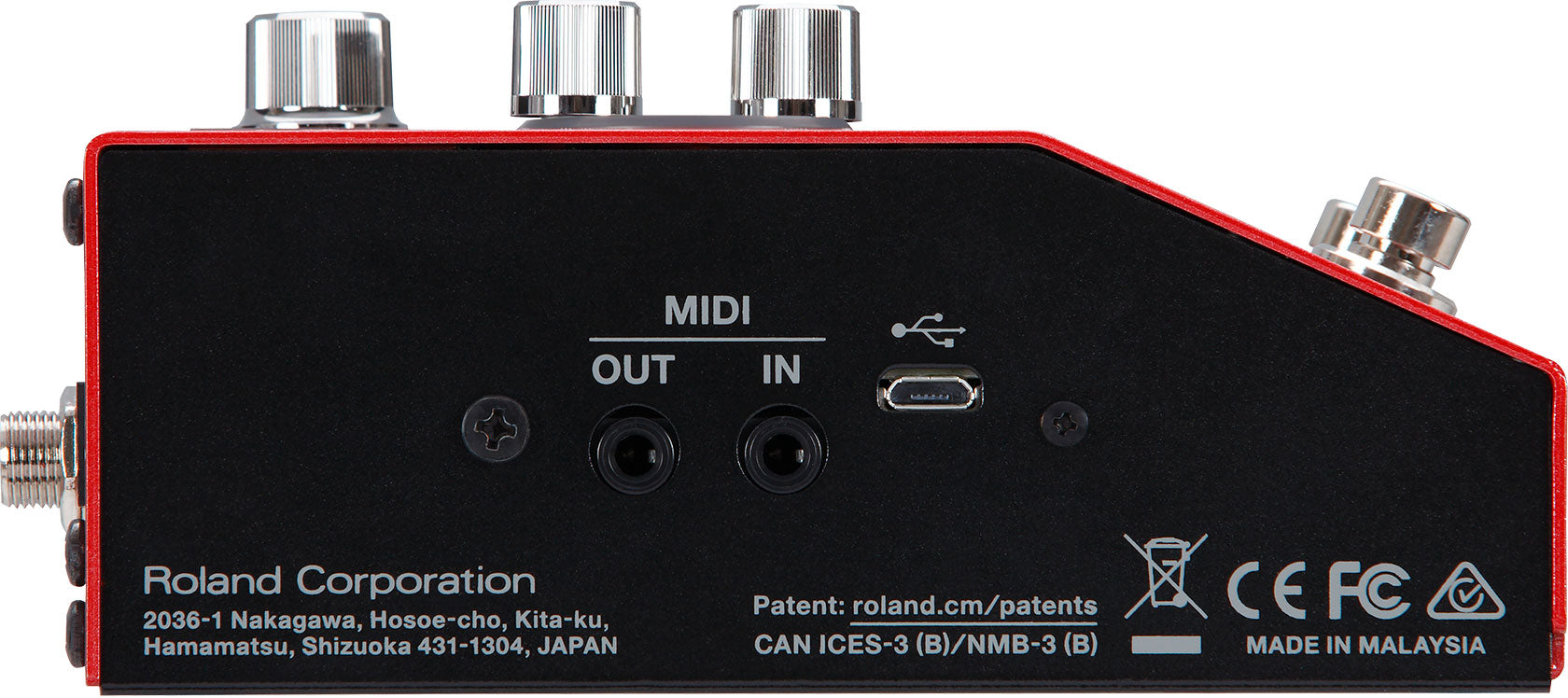

MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
USB COMPUTER port: USB micro B typePower SupplyAC adaptorCurrent Draw250 mAAccessoriesOwner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Rubber foot x 4Options (sold separately)Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535SIZE AND WEIGHTWidth101 mm
4 inchesDepth138 mm
5-7/16 inchesHeight (excluding rubber foot)63 mm
2-1/2 inchesHeight (including rubber foot)65 mm
2-9/16 inchesWeight (excluding AC adaptor)620 g
1 lbs 6 oz
